110 CFM Ultra Quiet Bathroom Exhaust Fan, Ceiling Mount Ventilation with White Grille, Energy Saving‌

<p>The Joeaonz 110 CFM Ultra Quiet Bathroom Exhaust Fan is a powerful and energy-efficient ventilation solution designed to quickly remove moisture, odors, and stale air from your home. This ceiling mount ventilation fan delivers a large 110 CFM airflow capacity, making it powerful enough for enclosed rooms up to 107 sq. ft., while operating at a remarkably quiet 30 decibels (2.5 SONES). Its high-quality motor and stainless steel insert housing ensure durable, moisture-proof, and rust-proof performance for a long service life. The integrated design and detachable 4-inch polymeric duct connector make installation simple, often allowing direct use of existing exhaust pipes. This versatile bathroom vent fan is perfect for not just bathrooms, but also bedrooms, laundry rooms, playrooms, and other enclosed spaces where maintaining fresh air, preventing mirror fog, and expelling dampness is a priority. The white plastic grille offers a clean finish, and its energy-saving 32-watt operation provides efficient home ventilation.<br></p>

• 110 CFM Powerful & Quiet Airflow

  Moisture-Proof & Durable Construction

  Easy Retrofit Installation

  Versatile for Multiple Rooms

  Energy-Efficient Operation

• Details:

  Performance & Capacity‌

      ‌Airflow:‌ 110 Cubic Feet Per Minute (CFM)

      ‌Noise Level:‌ 30 Decibels (2.5 SONES)

      ‌Coverage:‌ Effectively ventilates enclosed rooms up to 107 sq. ft.

      ‌Power:‌ 32 Watts

      ‌Voltage:‌ 120 Volts (AC)

  ‌Physical Dimensions & Installation‌

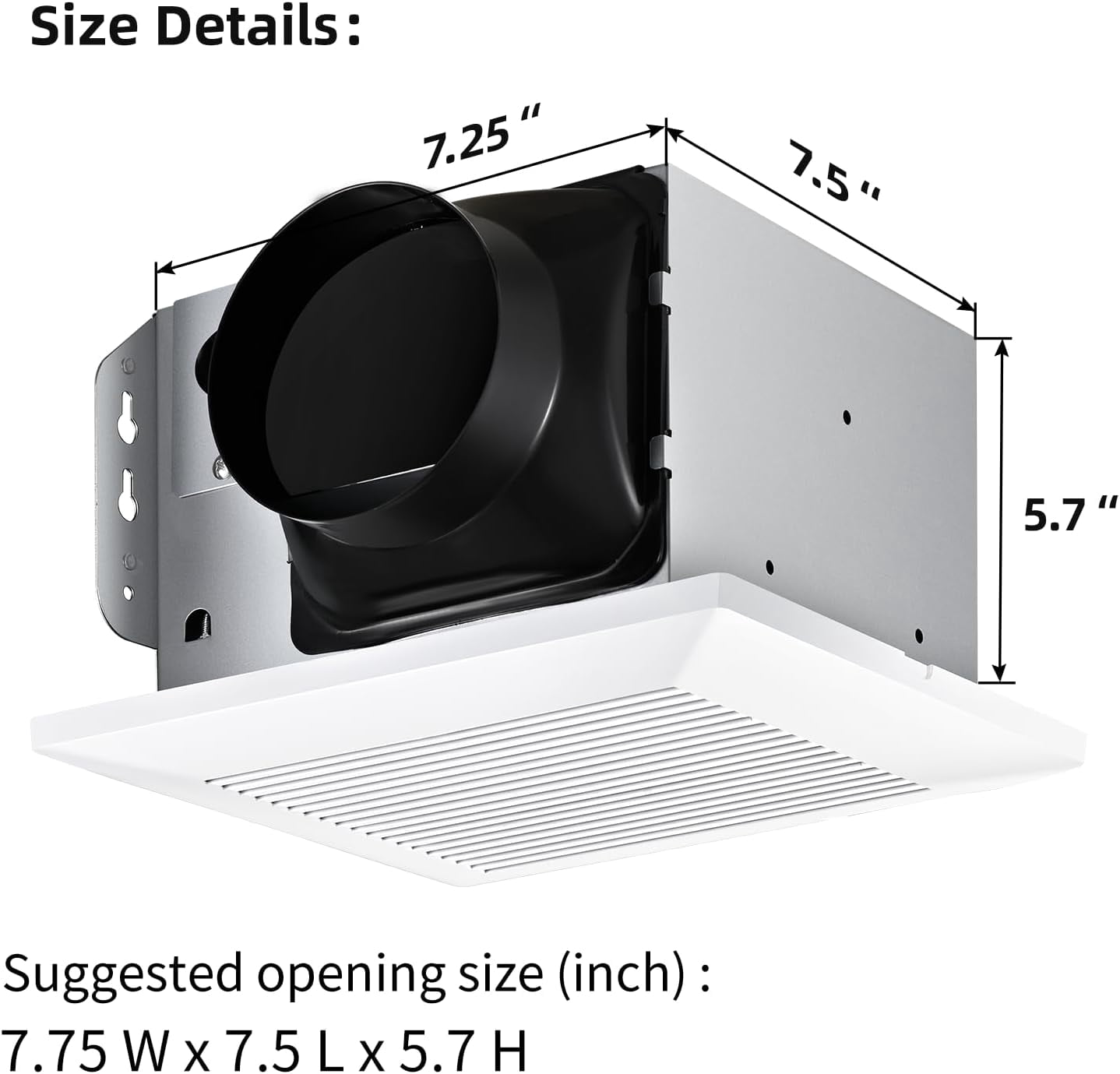

      ‌Product Dimensions:‌ 9.45"D x 9.45"W x 6.7"H

      ‌Suggested Ceiling Opening Size:‌ 7.75" W x 7.5" L x 5.7" H

      ‌Mounting Type:‌ Ceiling Mount

      ‌Duct Size:‌ 4 Inches

      ‌Duct Connector:‌ Detachable polymeric connector for easy retrofit installation.

  ‌Design & Construction‌

      ‌Housing:‌ Metal housing with a stainless steel insert, designed to be moisture-proof and rust-proof for durability in humid environments .

      ‌Grille:‌ White plastic.

      ‌Control:‌ Push-button switch.

      ‌Item Weight:‌ 5.48 lbs (2.49 kg)

  ‌Usage & Features‌

      ‌Primary Use:‌ Drying and ventilating.

      ‌Special Feature:‌ Moisture proof.

      ‌Recommended Rooms:‌ Bathroom, bedroom, laundry room, kids' room, playroom, study room, and other enclosed spaces.

      ‌Key Benefits:‌ Quickly removes moisture to prevent mirror fog and mold, eliminates odors, optimizes air quality, and operates with energy-saving efficiency .

• 110 CFM Powerful & Quiet Airflow

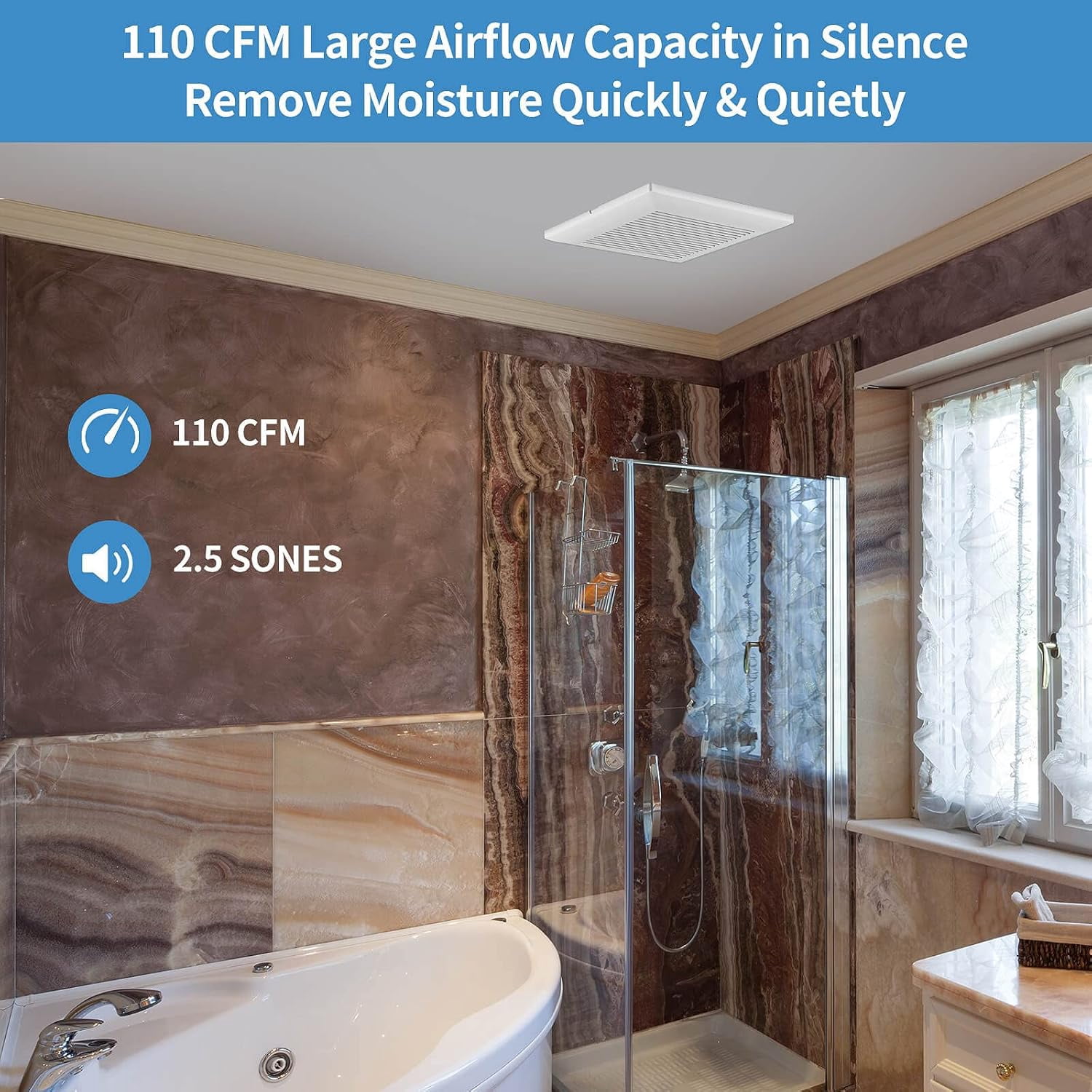

  Delivers a large 110 CFM airflow capacity to effectively ventilate rooms up to 107 sq. ft., while operating at a remarkably quiet 30 decibels (2.5 SONES).




  Moisture-Proof & Durable Construction

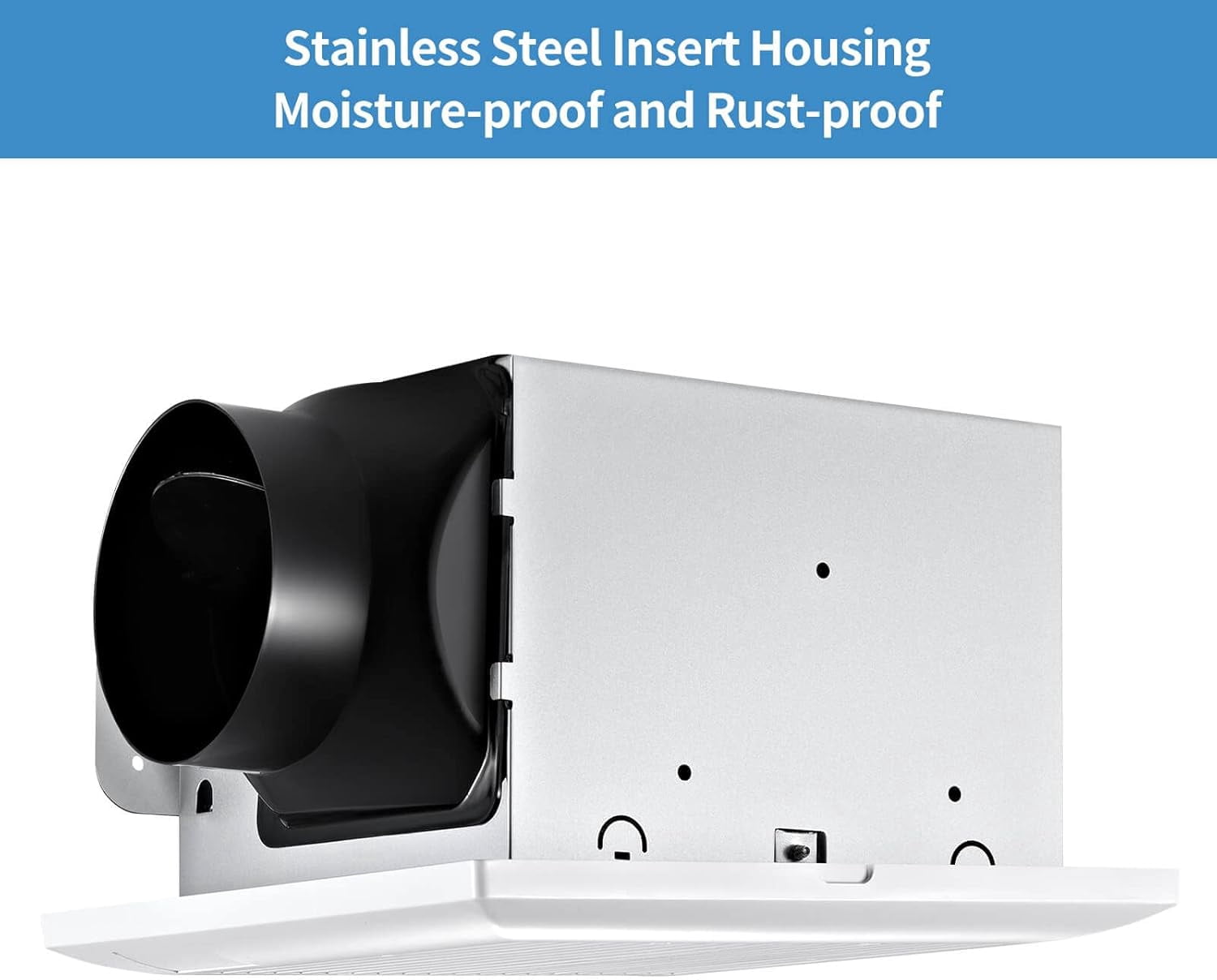

  Features a stainless steel insert housing that is moisture-proof and rust-proof, ensuring long-lasting performance in humid environments.




  Easy Retrofit Installation

  Equipped with a standard 4-inch detachable polymeric duct connector, allowing for simple installation and often direct connection to existing exhaust pipes.




  ‌Versatile for Multiple Rooms

  Ideal for removing moisture, odors, and stale air not only in bathrooms but also in bedrooms, laundry rooms, playrooms, and other enclosed spaces.




  ‌Energy-Efficient Operation

  Consumes only 32 watts of power, providing powerful ventilation while helping to save on energy costs.

• Joeaonz Exhaust Fan Simple Installation Guide‌

  Please follow these steps for a safe and correct installation. It is recommended that a qualified electrician performs the electrical connections.

  ‌Step 1: Check/Prepare Ceiling Opening‌

      If you are ‌replacing an old fan‌: Measure the existing opening to ensure it is large enough to accommodate the new fan housing (A) dimensions of ‌7-1/2 inches x 7-1/4 inches‌.

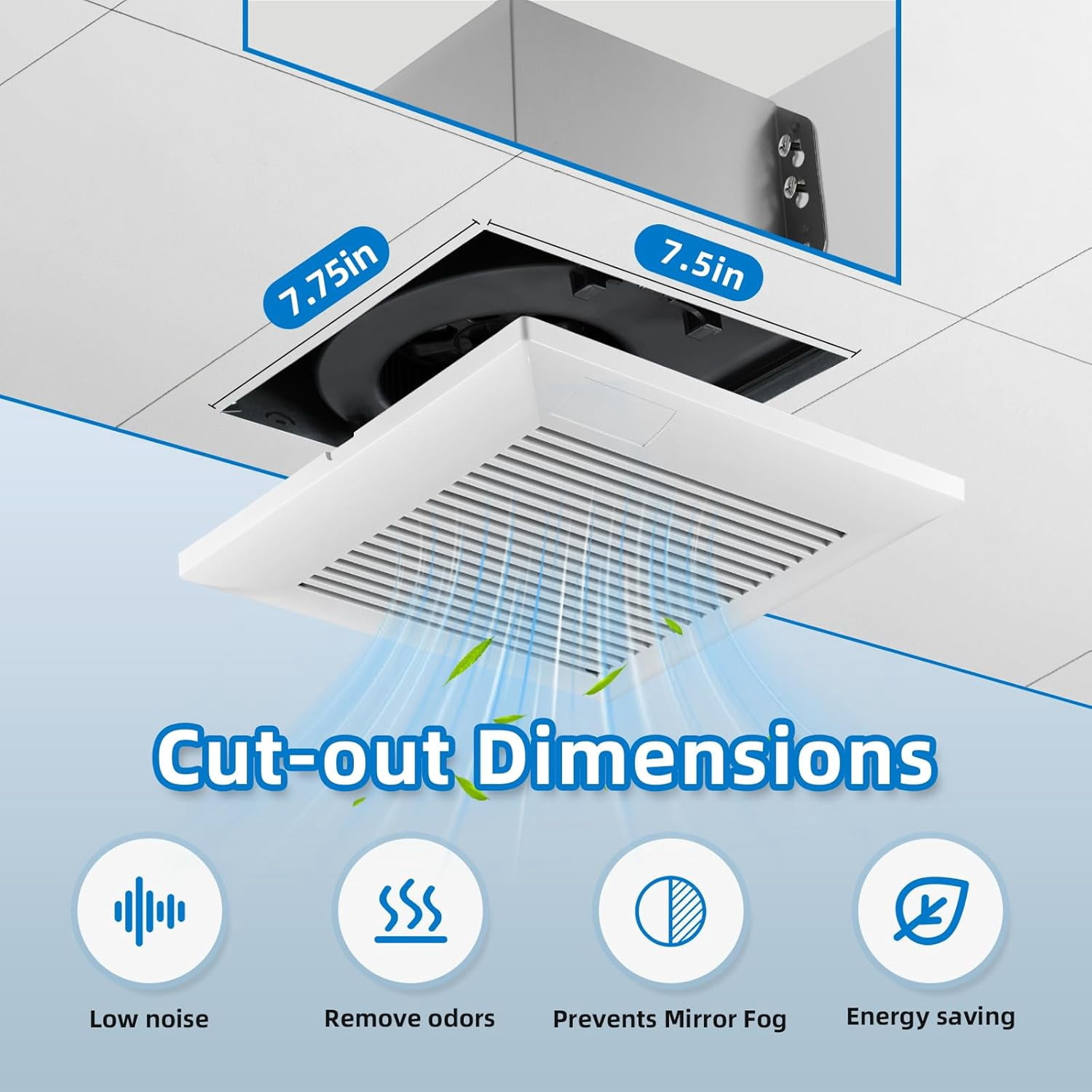

      If you are doing a ‌new installation‌: Cut a ‌7-3/4 inch x 7-1/2 inch‌ opening in the ceiling.

  ‌Step 2: Assemble the Duct Connector‌

      Attach the duct connector (C) to the fan housing (A).

  ‌Step 3: Remove the Fan Motor‌

      Remove the three side screws that secure the fan motor.

      Unplug the motor connector and carefully pull the fan motor out of the housing (A).

  ‌Step 4: Connect the Wiring‌

      Remove the wiring box cover from the fan housing (A).

      Pull the house wires through the hole in the wiring box cover. Using the provided quick connectors, connect the house wiring from the wall switch to the corresponding wires from the fan housing (A). ‌Note:‌ Please refer to the wiring diagram on page 4 of the manual for correct connections. If your house wire colors do not match, consult a licensed electrician.

      Carefully push the connected wires back into the wiring box and reattach the cover.

  ‌Step 5: Connect the Vent Duct‌

      Connect a 4-inch round duct to the duct connector on the fan housing (A). Secure it with duct tape or a clamp, ensuring the duct vents to the outside.

  ‌Step 6: Install the Fan Housing‌

      Place the fan housing (A) with connected wires and duct into the ceiling opening.

      Position it so the bottom edge of the housing is flush with the surface of the ceiling board.

      Secure the housing to the ceiling joist by driving three wood screws (AA) through the holes on the side of the housing. ‌Important:‌ The housing must be installed flush with the ceiling board, or the grille mounting springs may not reach the slots inside.

  ‌Step 7: Install the Fan Motor & LED Light Board‌

      Plug the fan motor connector (4-hole to 4-hole) into the receptacle inside the housing.

      Place the fan motor back into the housing, aligning the duct with the opening, and re-secure it with the three screws removed in Step 3.

      Plug the LED light board connector (2-hole to 2-hole) into its corresponding receptacle.

  ‌Step 8: Attach the Grille and Test‌

      Insert the springs of the LED light board/grille into the narrow rectangular slots inside the fan housing.

      Restore power and test the operation of the fan and light to ensure they are working correctly.
