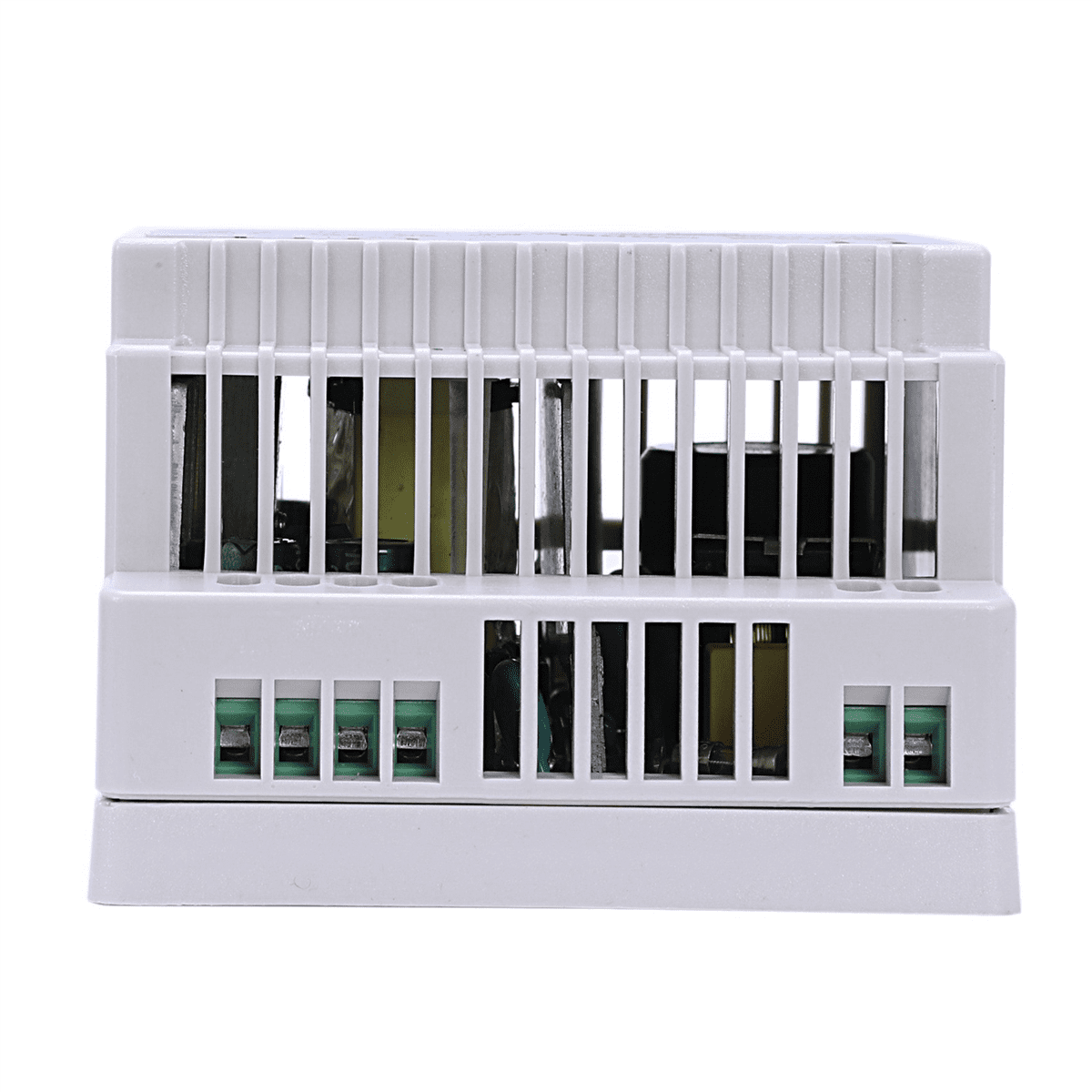

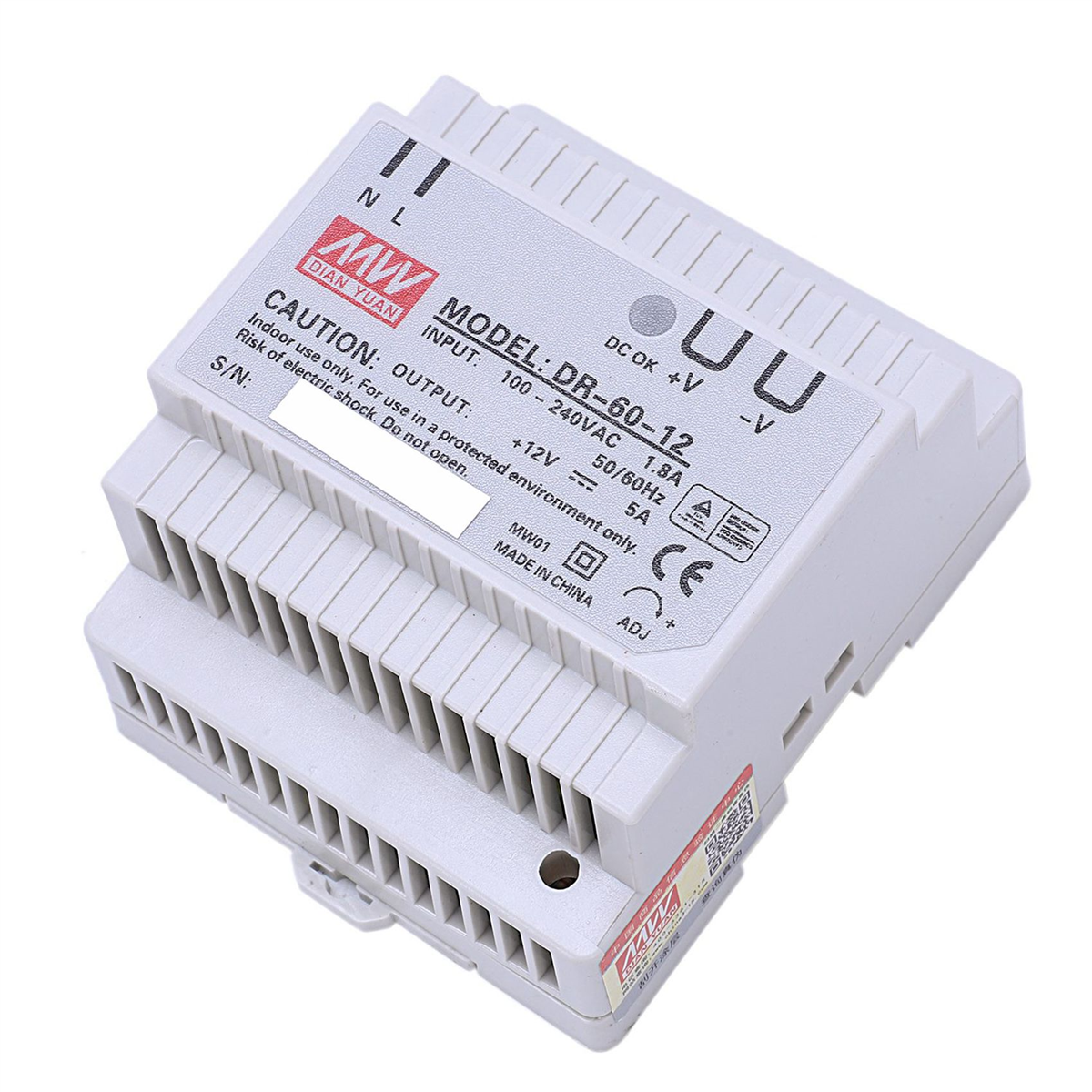

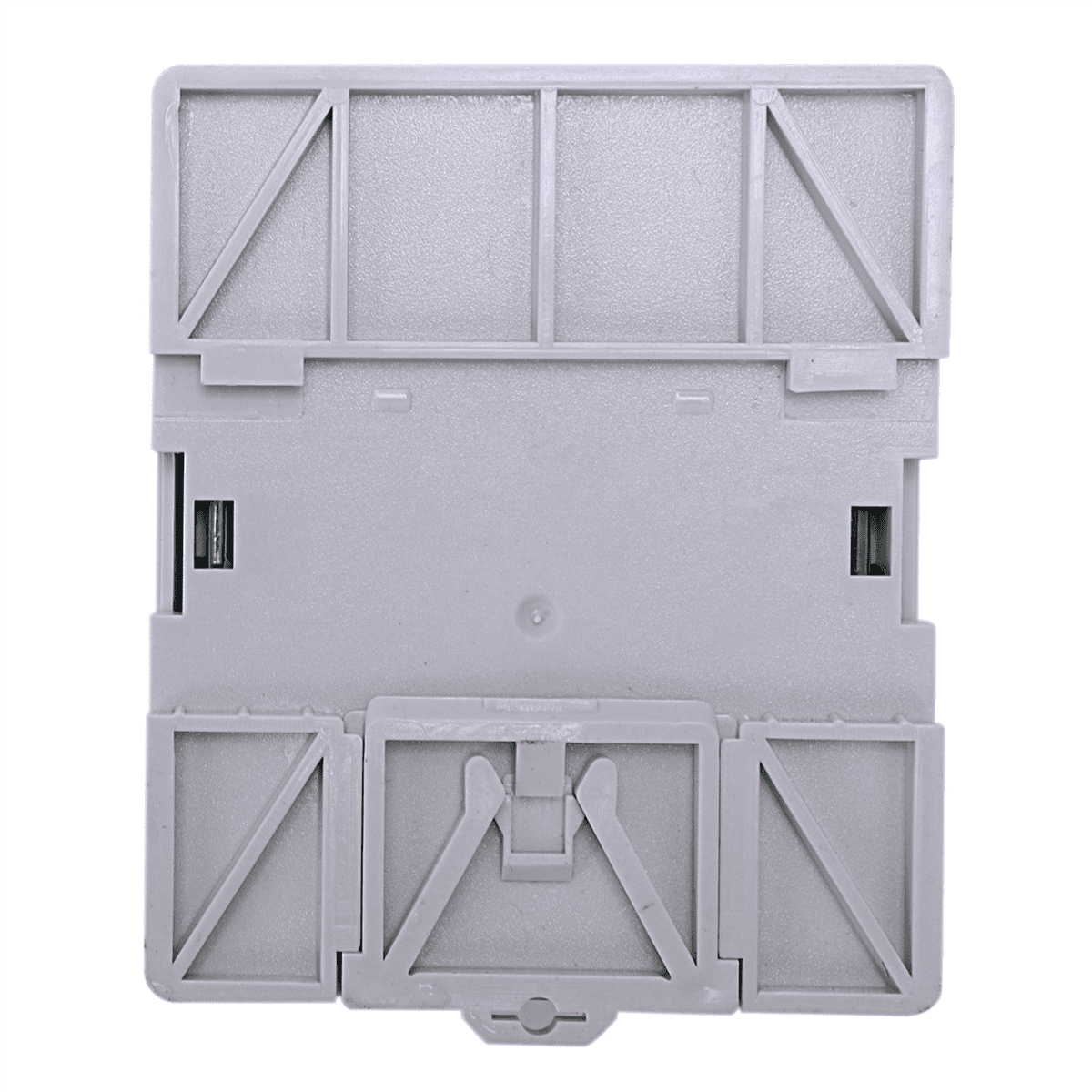

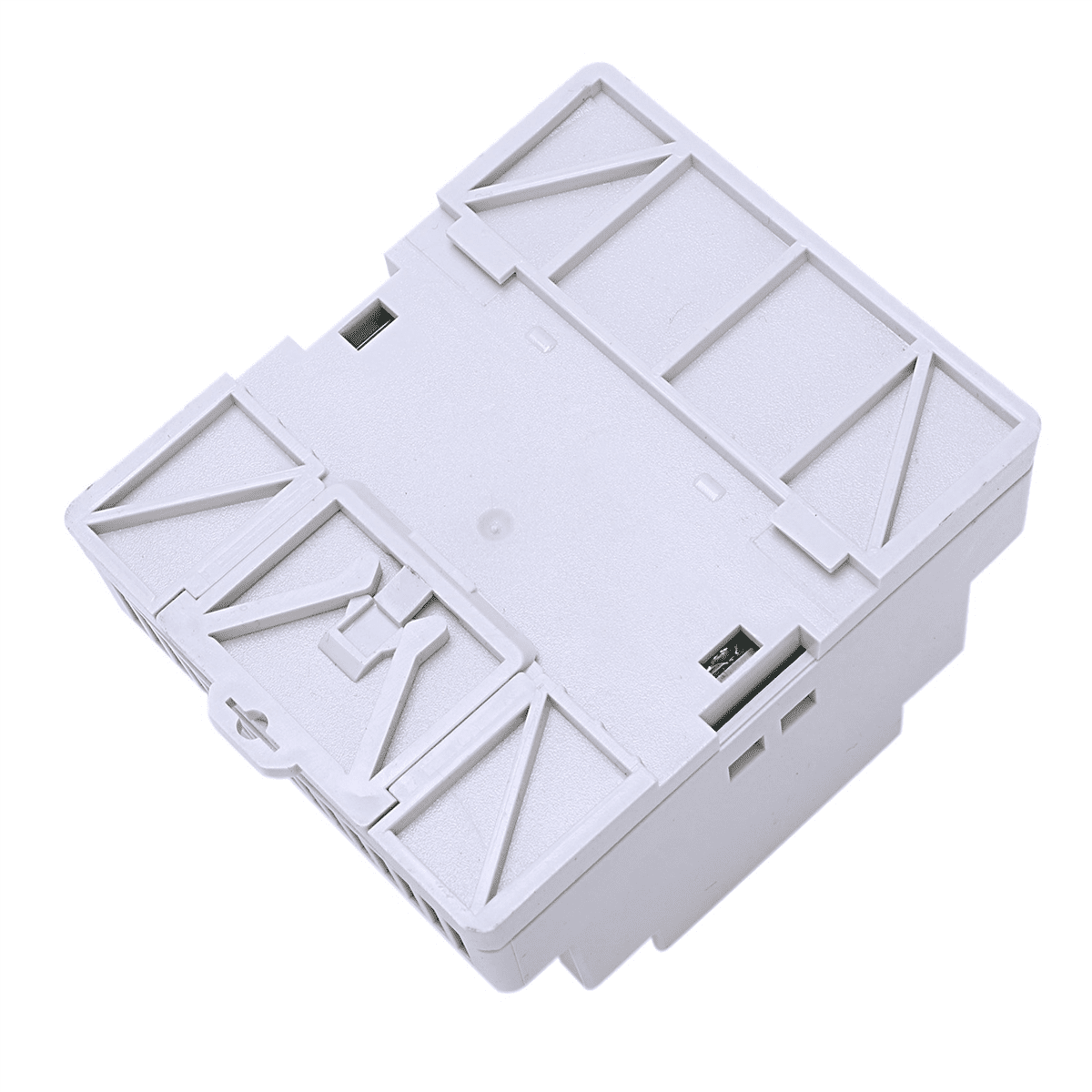

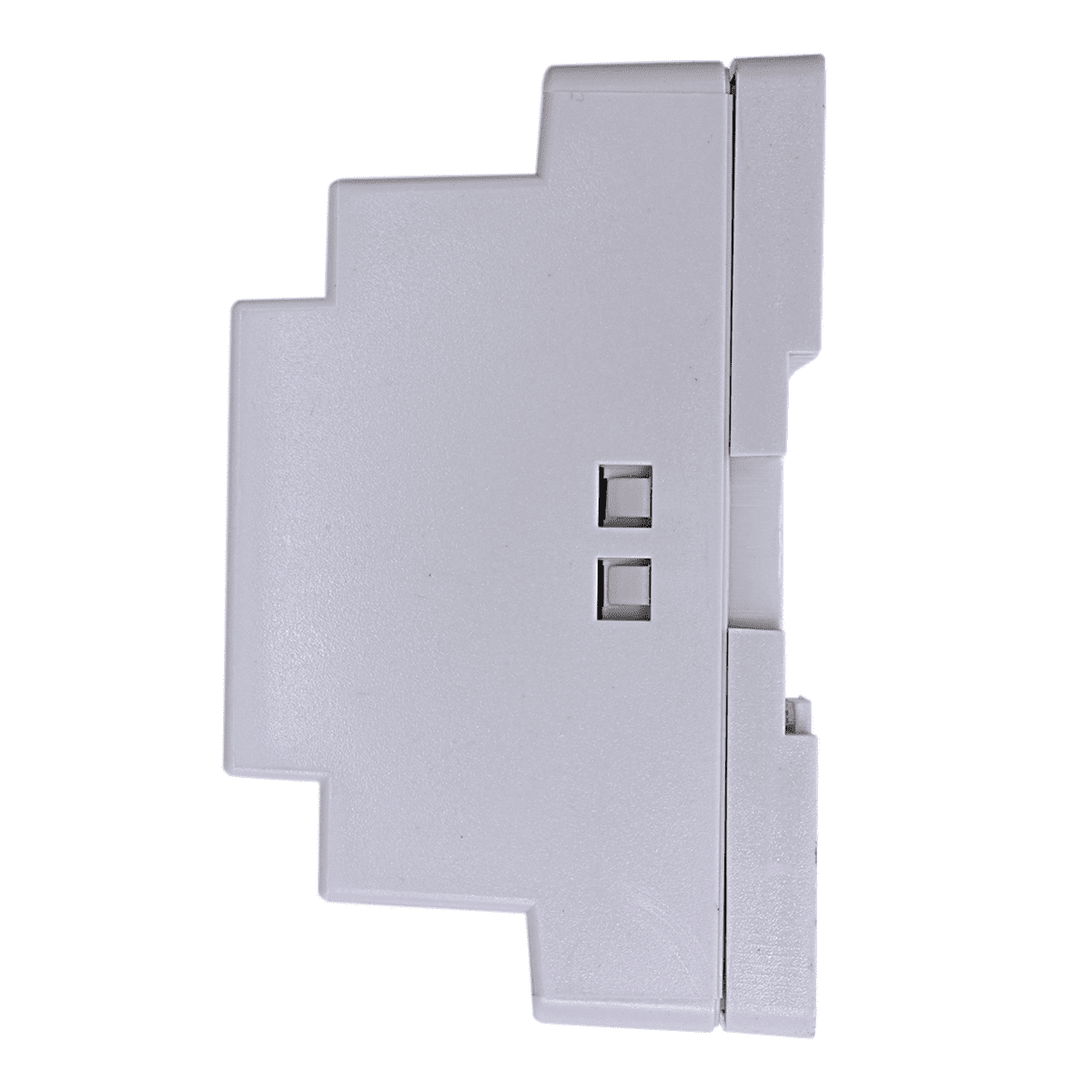

6X Din Rail Power Supply 60W 12V Ac Dc Converter -60-12 Power Supply 12V 60W

output<br> 12V<br>Voltage tolerance +/-1%<br>Rated current 4.5A<br>Current range 0~3.5A<br>Rated power 54W<br>Ripple&amp;noise 100mvp-p<br>DCvoltage ADJ.range +/-10%<br>input<br>Voltage range 90~264VAC,127~373VDC<br>frequency 47~63HZ<br>AC current 1.2A/110VAC,0.65A/220VAC<br>efficiency 82%<br>Inrush current<br>Cold current 25A/115VAC,50A/230VAC<br>Leakage current<br>Less than 1mA/240VAC<br>protection<br>Over load<br>Rated output power105%~150% over load protection<br>protection type: mode,auto-recovery after fault condition is removed<br>over voltage 15.6~17.8V<br>protection type: cut output voltage,diode clamp<br>environment<br>Working temp,humidity<br>-20 Celsius~+60 Celsius,20%~90%RH<br>Storage Temp,humidity<br>-40 Celsius~+85 Celsius,10%~95%RH non-condensing<br>Withstand vibration<br>10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes<br><br>Withstand voltage<br>I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC<br>Isolated resistance<br>I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC<br>Fit Standard<br> standard<br>Fit UL1012<br>EMC standard<br>comply with EN55022,CLASSA<br>colour: white<br>Material: ABS+ electronic components<br>size: 9.3*7.8*5.6cm<br><br>Package Contents:<br>6 *Rail type power switch<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 inch twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
• Output Power: 51 - 100W; Output Type: Single; Output Frequency: 50hz; Output Current: 0-5A
• Model: -60-12
• note: 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 Celsius of ambient temperature.
• 3. Tolerance: includes set up tolerance, line regulation and load regulation.
